BGA-Bottom-33

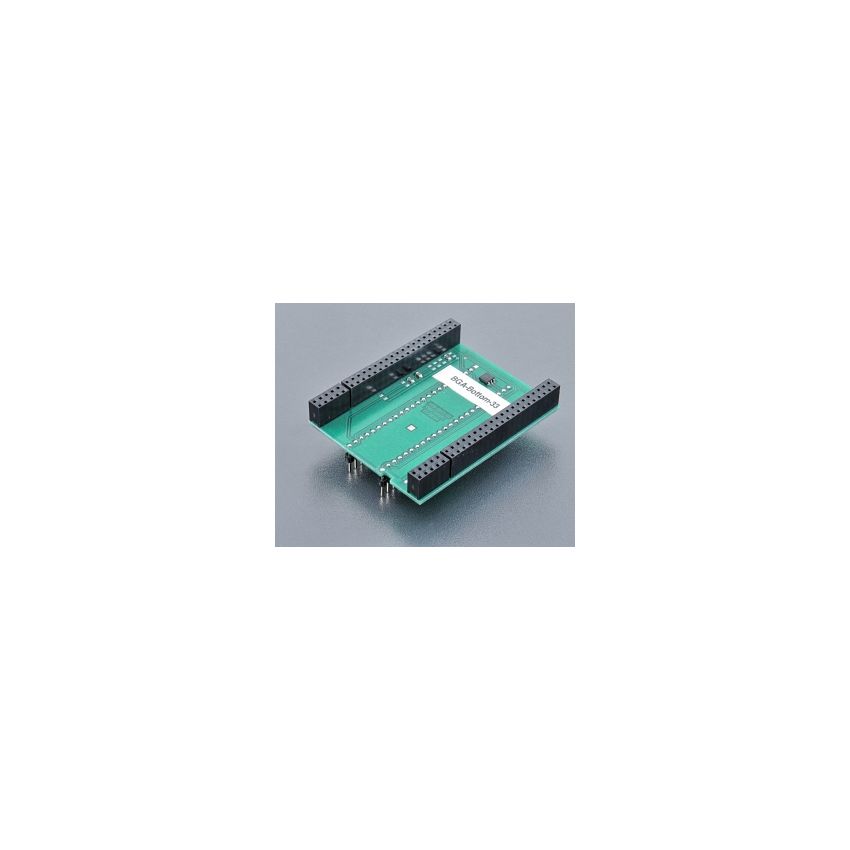

The bottom board of the BGA adapter with Ord. no. 70-0458 is specifically designed for CPLD (Complex Programmable Logic Device) devices from Xilinx XC9500/XL/XV series in a matrix 7x7 configuration. The adapter is made in Slovakia to high-quality standards, ensuring reliable performance and durability.



The bottom board features 2 rows of 2x24 pins, arranged in a square pattern with a row spacing of 600mil. These pins are designed to provide a reliable electrical connection between the adapter and the target CPLD devices. The pins are compatible with Xilinx XC9500/XL/XV series devices, allowing for efficient communication and operation during programming or testing.



The connection to the BGA-Top-X on the top board of the adapter includes 4 rows of sockets for 4x25 wire wrap pins. This ensures a secure and reliable connection between the top and bottom boards of the adapter, enabling smooth communication and operation during programming or testing of the CPLD devices.



The Ord. no. 70-0458 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. It is important to verify the compatibility of the adapter with the specific CPLD devices and follow the manufacturer's guidelines for proper usage to ensure correct functionality and avoid potential damage to the devices or the adapter.
