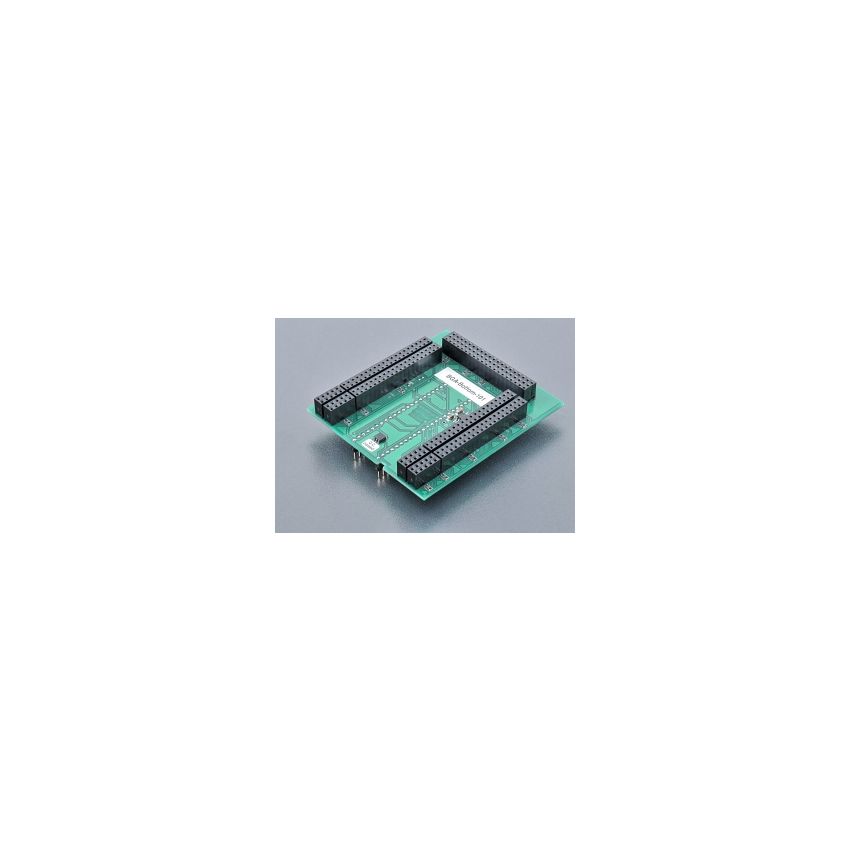

BGA-Bottom-101

The bottom board of BGA adapters is specifically designed for FPGA devices Actel ProASIC3 and IGLOO in matrix 16x16 configuration. It is made in Slovakia, known for its high-quality manufacturing standards, and has an order number of 70-0965 for easy identification and ordering.



The connection to BGA-Top-X is achieved through 8x25 3x20 sockets for wire wrap pins, ensuring a reliable and robust connection between the top and bottom boards. The bottom board features a 2x24 pin configuration with square pins measuring 0.6x0.6mm and a row spacing of 600mil, providing compatibility with standard pinout configurations.



The bottom board of BGA adapters is designed to work in tandem with the top board, allowing for seamless programming and testing of FPGA devices Actel ProASIC3 and IGLOO in matrix 16x16 configuration. It is made in Slovakia with an order number of 70-0965, and it features a reliable and durable design to ensure accurate and efficient operations.
