Andonstar ADSM302 560X HDMI PCB Soldering Digital Microscope

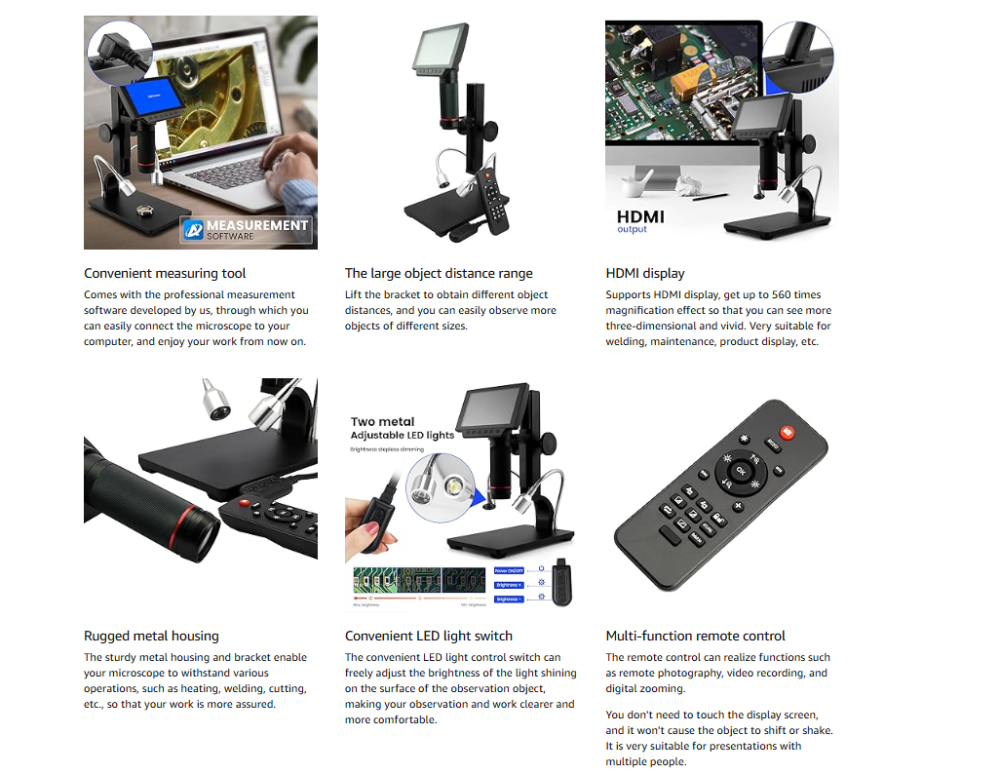

The Andonstar ADSM302 Digital Microscope is a versatile tool that can be used by professionals, students, and hobbyists alike to explore and magnify the minute structure of objects such as circuit boards, coins, jewelry, textiles, skin, and insects. With its built-in LED lights and height-adjustable stand, the microscope's object distance, focal length, and brightness can be easily adjusted to suit different applications. This affordable digital microscope comes with a built-in 3 megapixels HD sensor that provides up to 560 times magnification on an HDMI monitor that is 22 inches in size. This makes it ideal for PCB checks, SMD work, QC inspection, jewelry appraisal, antique authentication, watch or cell phone repairing, and other applications that require high magnification. The microscope features a large 5-inch LCD screen that provides a broad field of view for easy viewing, and a convenient remote control that allows you to take pictures, record videos, zoom in, zoom out, and perform other simple operations. The microscope can also be connected to a computer via USB, and images captured by the lens can be easily sent to a multimedia device. The microscope's height-adjustable stand can be adjusted to vary the magnification and distance between the camera and the object, and it comes equipped with two LED lights that provide excellent detail and optimal clarity. The brightness of the LED lights can be adjusted using the dimmer, and the microscope also features two freely adjustable fill lights on both sides. The Andonstar ADSM302 Digital Microscope is suitable for a wide range of applications, including coin and stamp collections, skin inspection, industrial inspection (PCB), animal/plant/insect observation, jewelry appraisal, print circuit board repair, and more. Overall, this digital microscope is an excellent tool for anyone who needs to magnify and explore the minute structure of objects.

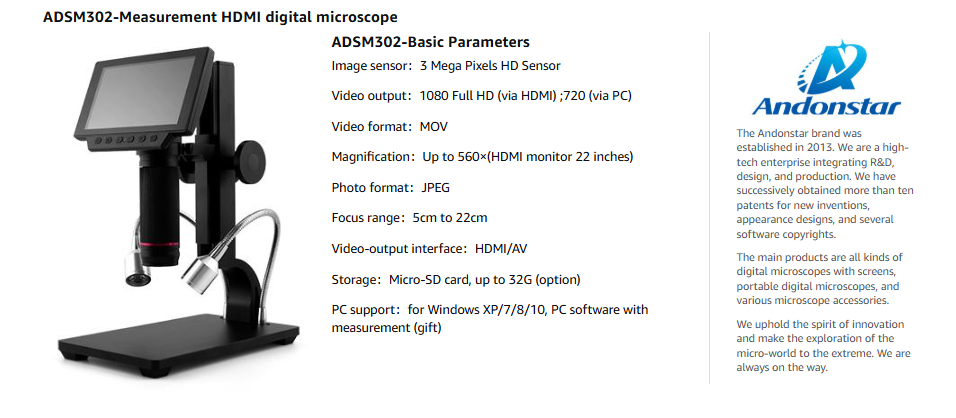

Specification:

• Image sensor: 3 Megapixel HD Sensor
• Video output: 1080P Full HD (via HDMI);720P(via PC)
• Video format: Real-time play via HDMI w/o recording; MJPEG recording Via PC Software
• Magnification: Up to 560 times (HDMI monitor 22 inches)
• Photo resolution: 12M
• Photo format: JPEG
• Focus range: 5cm to 22cm
• Frame rate: Max 30f/s under 600Lus Brightness
• Video-output interface: HDMI/AV
• Storage: Microscope-SD card, up to 32G
• PC support: Yes, for Windows 7/8/10, PC software with Measurement
• Power source: 5V DC
• Light source: 2 LED with the stand
• Screen size: 5 inch
• Stand size: 20*12*26.5cm
• Certification: CE/FCC/ROHS/HDMI
