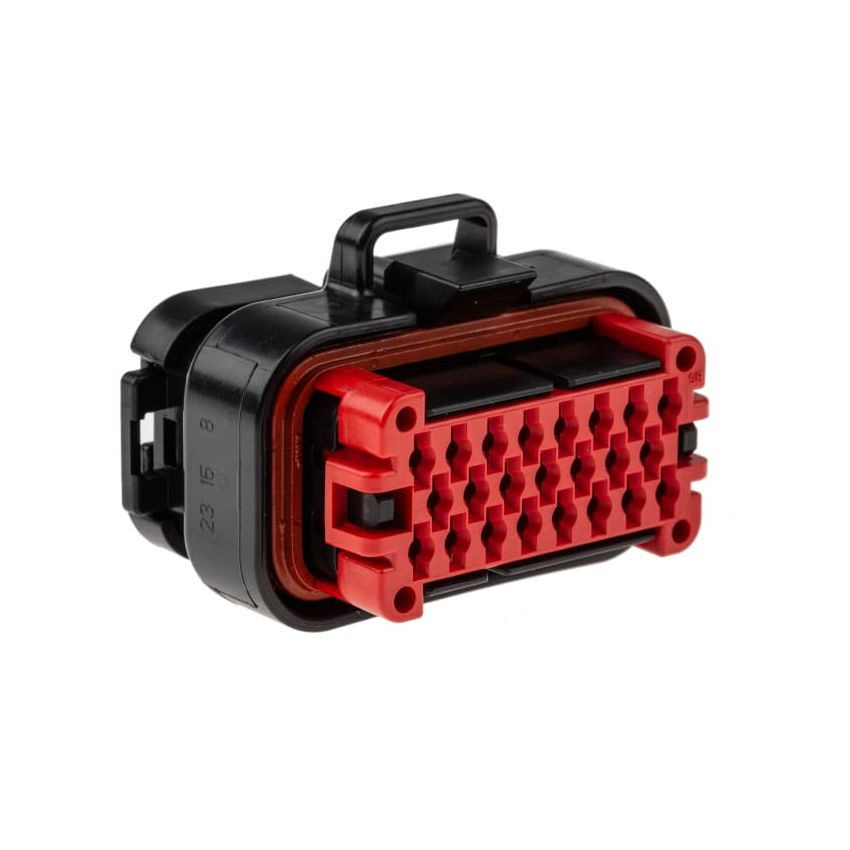

Housing for Female Terminals, Wire-to-Board, 23 Position, .157 in [4 mm] Centerline, Sealable, Black, Power & Signal, AMPSEAL

Specifications:

Number of Positions : 23
Number of Rows : 3
Operating Voltage (VAC): 250
Nominal Voltage Architecture (V): 250
Cable Exit Angle : 180°
Primary Product Color : Black
Connector & Keying Code : 1
Contact Type : Socket
Contact Size : 1.3mm
Mating Pin Diameter : 1.3 mm [ .051 in ]
Contact Current Rating (Max) (A): 17
Housing Material : PBT GF
Centerline (Pitch) : 4 mm [ .157 in ]
Row-to-Row Spacing : 4 mm [ .157 in ]
Product Length : 47.4 mm [ 1.866 in ]
Product Width : 33.6 mm [ 1.323 in ]
Connector Height : 34.6 mm [ 1.362 in ]
Operating Temperature (Max) : 125 °C [ 257 °F ]
Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]
