Specifications:

Product: Multiplexers
Logic Family: 74HC
Number of Input Lines: 4 Input
Number of Output Lines: 1 Output
Propagation Delay Time: 14 ns
Supply Voltage - Min: 2 V
Supply Voltage - Max: 6 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: 125 C
Mounting Style: Through Hole

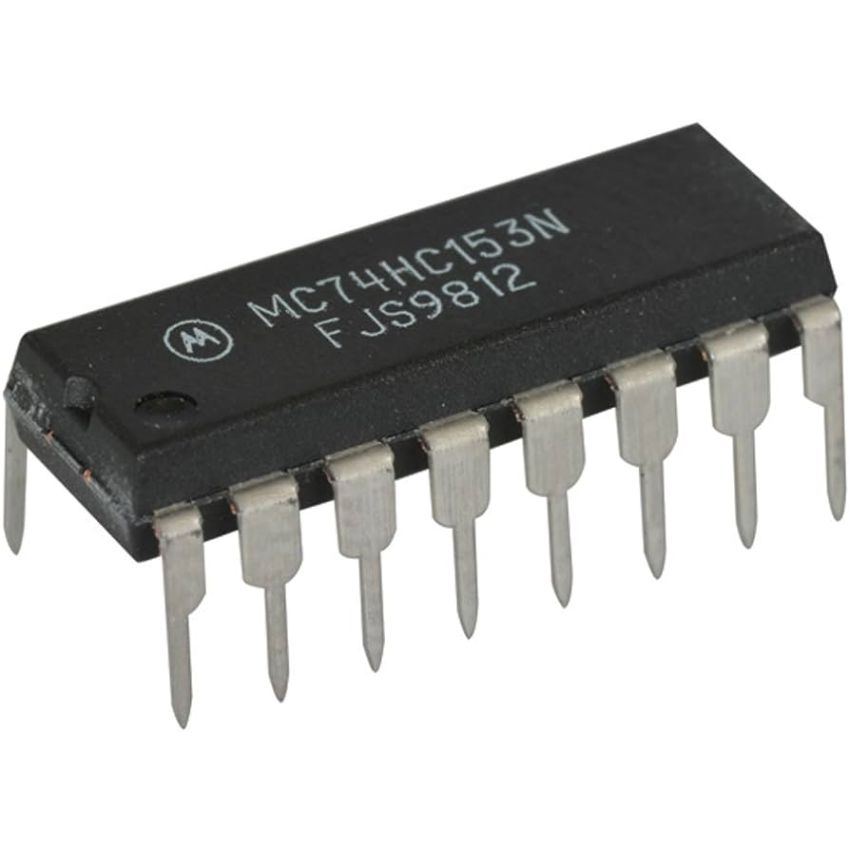

Package/Case: PDIP-16
Function: Multiplexer
Height: 3.2 mm
High Level Output Current: - 7.8 mA
Length: 19.5 mm
Logic Type: Dual Multiplexer
Low Level Output Current: 7.8 mA
Number of Circuits: Dual
Operating Supply Voltage: 2 V to 6 V
Output Current: /- 25 mA
Output Voltage: 5.81 V
Pd - Power Dissipation: 750 mW
Technology: CMOS
Width: 6.48 mm
Unit Weight: 1,628 g
"
