Description:

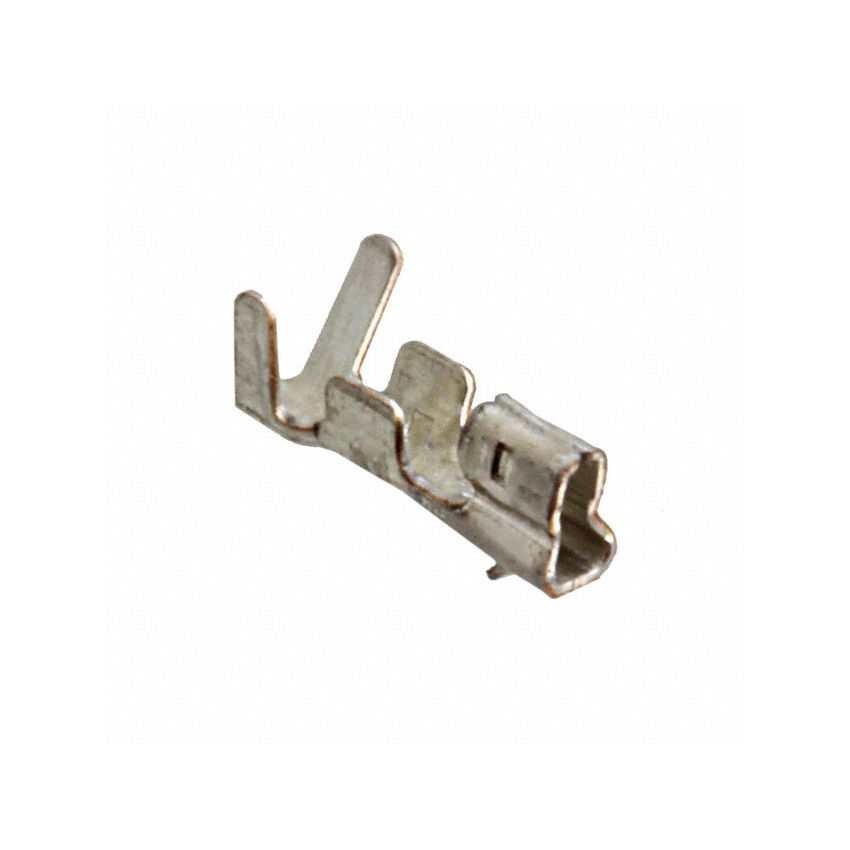

Contact Type : Socket
Connector System : Wire-to-Board
Centerline (Pitch) : 2.5 mm [ .098 in ]
Wire Size (AWG): 28 – 22
Wire Size (mm²): .079 – .38

Specifications:

Compatible With Wire & Cable Type : Discrete Wire
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Contact Base Material : Phosphor Bronze
Wire Contact Termination Area Plating Material : Pre-Tin
Wire Contact Termination Area Plating Thickness (µin): 80
Mating Square Post Dimension : .64 mm [ .025 in ]
Contact Type : Socket
Contact Mating Area Plating Material : Tin
Contact Current Rating (Max) (A): 3
Wire Size (AWG): 28 – 22
Wire Size (mm²): .079 – .38
